Accesories for Glider Modelling

Here you can find some accessories for the practice of glider modelling.

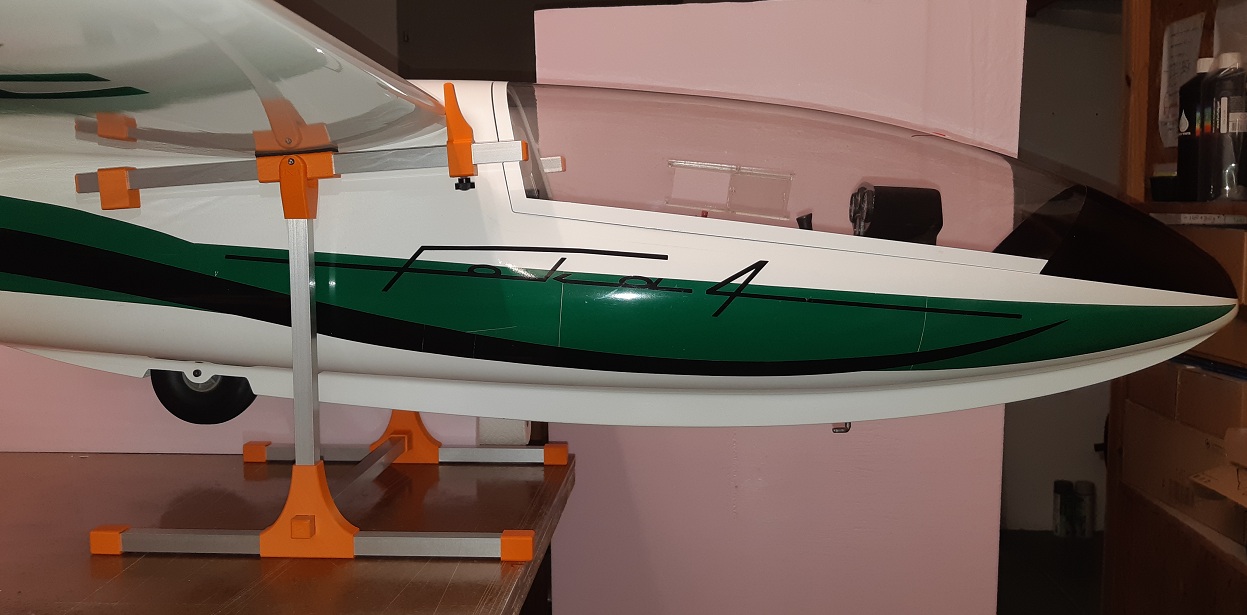

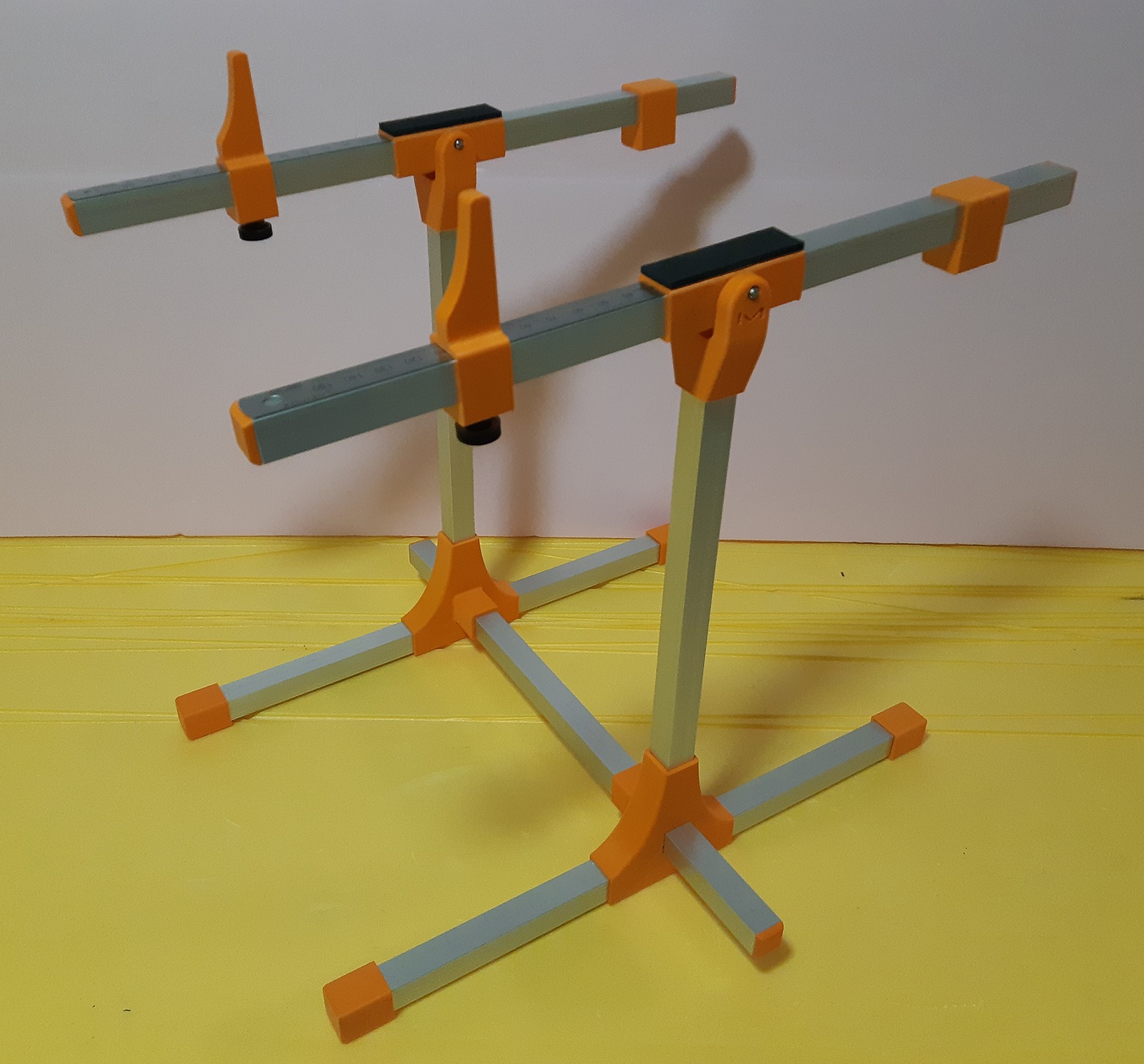

Measuring Scale for Center of Gravity

 Device for measuring the center of gravity of your models.

• Rotation axes mounted on ball bearings

• Counterweights to neutralize the weignt of the stops when moving it

• Available in twos sizes : for models until 13Kg and until 26Kg
• Adjustable width to fit according to your model fuselage width

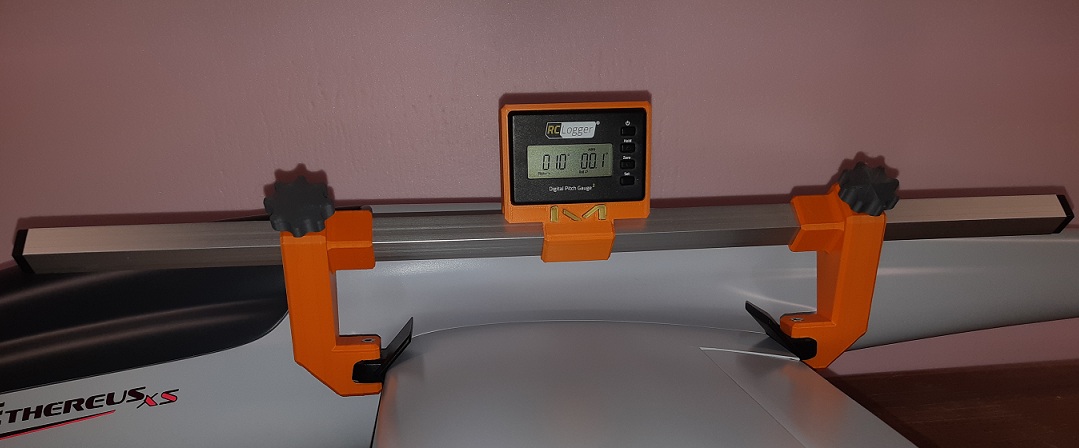

Digital Incidencemeter & control surface deflection mesure

This device allows you to measure the angle of incidence of your models. (difference between the angle of attack of the wing and the horizontal stabilizer)

This is important to get the best adjustements to give the best flying capabilities to your lovely models.

It's quite frequent, even for ready to fly models, that this angle value is false, so better measure and adjust it !

• Digital clinometer, that has longitudinal and lateral angle values.
• Resolution : 0.1°
• Maximal Wing Chord measurable : 500mm (can be made bigger)

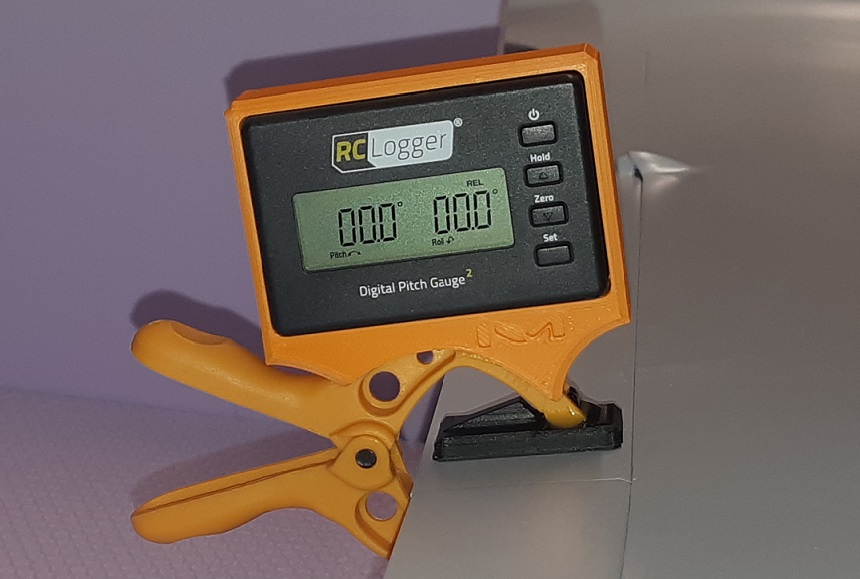

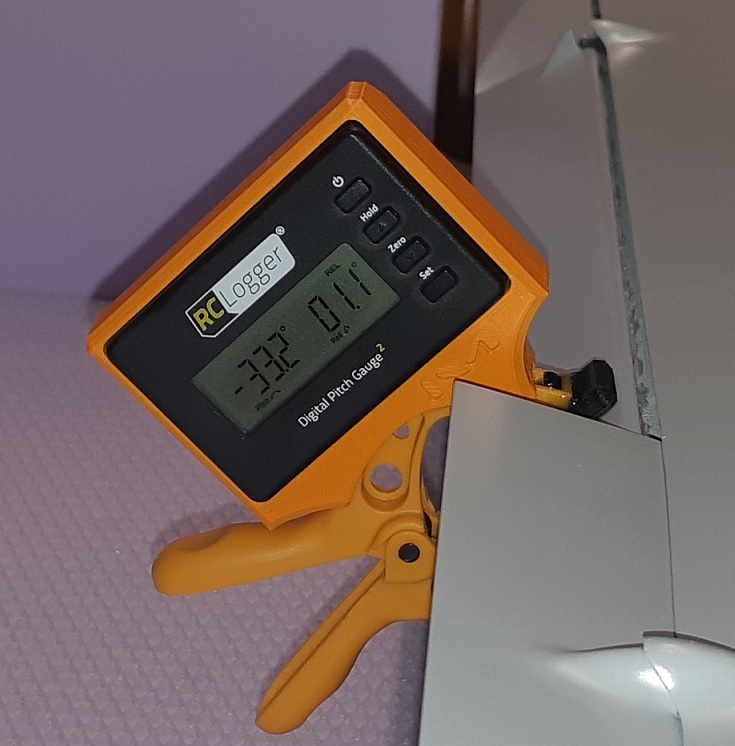

• Clinometer support on clamp to measure the deflection of your control surfaces
• Narrow set of v-parts to measure at fuselage wing root
• V-parts can be turned to adjust to your wing geometry
